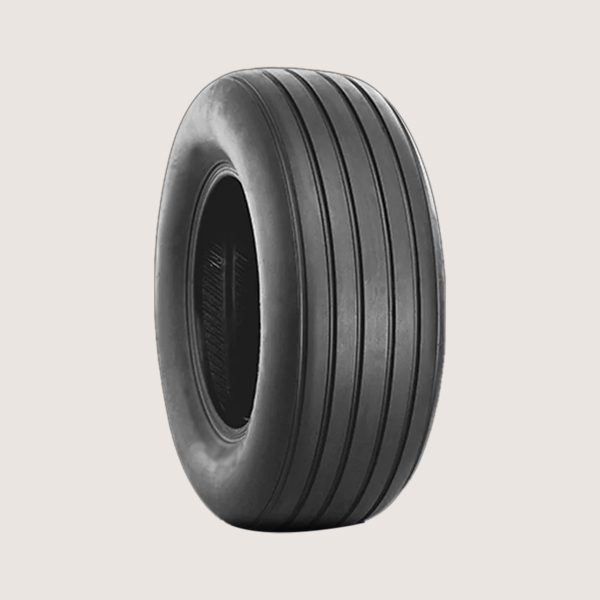

JIF-204 | Flotation Implement Tyres | Size 9.5L-14, 9.5L-15, 11L-14, 11L-15, 11L-16 and More Sizes
| Size | Ply Rating | Rim Width | Inflated Dimensions (+/- 2%) | Load Capacity (Kg) | I.P. (Bar) | ||
|---|---|---|---|---|---|---|---|
| OD (mm) | CSW (Section Width) (mm) | Free Rolling | Drive Wheel | ||||
| 9.5L-14 | 8 | 7.00 | 738 | 242 | 1090 | – | 3 |
| 9.5L-15 | 8 | 7.00 | 770 | 243 | 1150 | – | 2.50 |
| 11L-14SL | 6/8 | 8.00 | 752 | 279 | 925 | – | 1.20 |
| 11L-15SL | 8/10 | 8.00 | 772 | 268 | 1320 | – | 3.00 |
| 11L-16SL | 8/10 | 8.00 | 798 | 268 | 1360 | – | 3.00 |
| 12.5L-15 | 8/10 | 10.00 | 822 | 308 | 1550 | – | 3.30 |
| 12.5L-16 | 8/12 | 10.00 | 842 | 312 | 1800 | – | 3.60 |
| 7.50-16 | 8 | 5.50 | 786 | 204 | 1060 | – | 3.30 |
| 9.00-16 | 10 | 6.00 | 846 | 232 | 1500 | – | 3.60 |
| 16.5L-16.1 | 8 | 14.00 | 1024 | 419 | 2000 | – | 2.00 |
| 6.70L-15 | 6 | 4.50 | 714 | 174 | 730 | – | 3.00 |
| 7.60L-15 | 6 | 5.50 | 734 | 193 | 800 | – | 2.80 |
